I wanted to follow up on our energizing, if scattered, chat from the track. I know we were both running on fumes after that paper deadline.. I kept coming back to our shared theme of "understanding the unseen." It's the core of what we do in RF - sensing signals, channels, and objects that are invisible to the eye. It's a metaphor for faith and comprehending how our actions echo in eternity.

We started by talking about the ionosphere (IS), that dynamic, invisible ceiling above us ranging from about 60 km to 600 km altitude. The ionosonde network has been our primary tool for "seeing" it for decades through the Global Ionospheric Radio Observatory (GIRO) network.

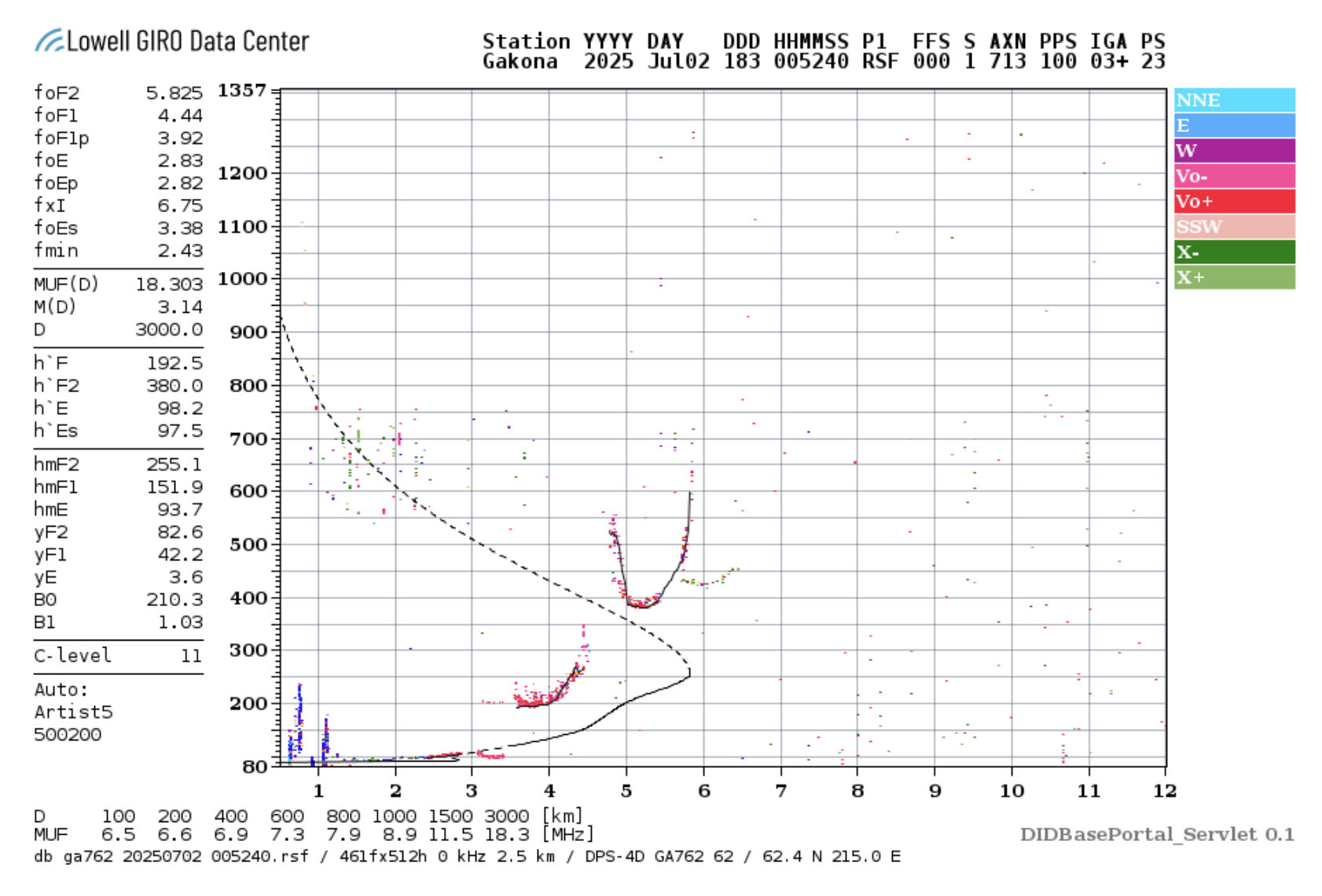

Earth's Atmospheric Layers - Ionospheric layers showing D, E, F1, and F2 regions with typical height ranges (60-600 km)

Earth's Atmospheric Layers - Ionospheric structure diagram

We discussed measuring the Total Electron Content (TEC) and the important distinction between electron density and flux:

Electron Density ($n_e$):

$$n_e = \frac{\text{number of electrons}}{\text{volume}} \quad \text{[electrons/m³]}$$

Electron Flux ($\Phi_e$):

$$\Phi_e = n_e \cdot \vec{v} \cdot \hat{n} \quad \text{[electrons/(m² · s)]}$$

Total Electron Content (TEC):

$$\text{TEC} = \int_{0}^{h} n_e(z) \, dz$$

Measured in TEC Units (TECU), where 1 TECU = 10¹⁶ electrons/m²

This is the heart of our AI/ML beamforming work - we need to be fluent in translating between antenna gain patterns and Channel State Information (CSI) matrices.

MIMO System Architecture showing beamforming arrays and channel state information matrix

Channel State Information Matrix:

$$\mathbf{H} = [h_{ij}] \quad \text{where } h_{ij} = |h_{ij}|e^{j\phi_{ij}}$$

CSI to Gain Pattern:

$$G(\theta, \phi) = |\mathbf{w}^H \mathbf{a}(\theta, \phi)|^2$$

Zero-Forcing Beamforming:

$$\mathbf{P}_{\text{ZF}} = \mathbf{H}^H(\mathbf{H}\mathbf{H}^H)^{-1}$$

Theoretical Issue:

When the channel matrix $\mathbf{H}$ is ill-conditioned (weak channels), its inverse contains very large values, demanding enormous transmitter power. This is the "noise enhancement problem" of zero-forcing.

The idea of using electrically small antennas challenges conventional wisdom. The "umbrella ionosonde" concept faces the challenge that low-frequency RF (1-30 MHz) requires large antennas - a 5 MHz signal has a 60-meter wavelength!

The Beamforming Solution:

Beamforming gain compensates for individual element inefficiency
Higher frequency probing at specific ionospheric resonances
Mutual coupling effects in closely spaced arrays can be beneficial

Ground properties (seawater, concrete, asphalt, soil, vegetation) critically affect radiation patterns. The ground acts as a mirror, creating interference between direct and reflected waves.

Ground reflection propagation showing path difference and interference effects

Free-Space Path Loss:

$$L = 20\log_{10}\left(\frac{4\pi d}{\lambda}\right) \quad \text{[dB]}$$

Beamforming Enhancement:

$$L_{\text{effective}} = L - 10\log_{10}(D)$$

where $D$ is directivity gain

The reflection coefficient for different ground materials significantly affects radiation patterns:

$$\Gamma = \frac{Z_{\text{ground}} - Z_0}{Z_{\text{ground}} + Z_0}$$

The observation about equivalence between mechanical antennas (Yagi arrays with directors/reflectors) and digital beamforming arrays is profound. Both achieve directivity through controlled interference:

Mechanical Antennas:

Fixed geometry creates phase relationships

Digital Arrays:

Programmable amplitude and phase control

This suggests we could "reverse engineer" classic antenna designs into optimal beamforming algorithms - turning decades of mechanical antenna engineering into neural network training data.

Passive Radar

The idea of using ambient communication signals for radar-like sensing is an active research area called passive coherent location. The challenge lies in separating direct signals from multipath returns, requiring sophisticated signal processing to correlate transmitters of opportunity (TV, radio, cellular) with their echoes.

Ultrasonic Beamforming - The Echomatic

The Echomatic concept brilliantly extends RF beamforming principles to acoustics. The vest would use ultrasonic phased arrays to:

Create focused acoustic beams for spatial resolution
Provide frequency diversity for material classification
Enable Doppler processing for motion detection

The frequency upconversion/downconversion scheme maintains natural vocal patterns while leveraging ultrasonic propagation advantages, essentially turning ambient space into a navigable, perceptible landscape.

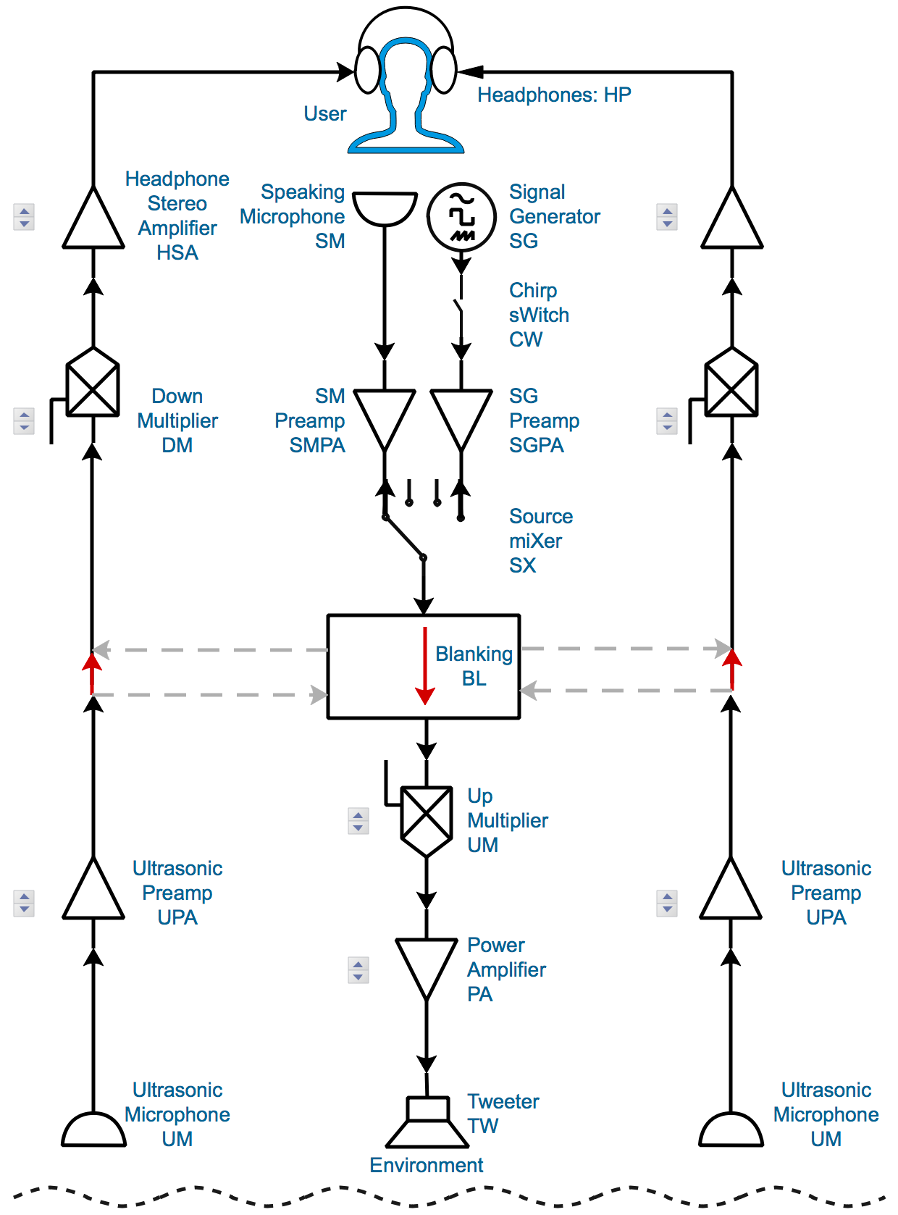

Echomatic System Schematic - Signal processing and echo analysis diagram

Echomatic system schematic showing signal processing architecture

Moving Forward

Despite our mental fatigue yesterday, these interconnected ideas form a coherent research direction. The common thread - whether ionospheric sounding, beamforming, or acoustic sensing - is our quest to reveal the invisible through intelligent signal processing and antenna engineering.

The idea of exploring mathematical simulation of the umbrella ionosonde concept next would be valuable, particularly modeling the array geometry optimization for portable deployment. We should also investigate how mechanical antenna principles can inform our neural network architectures for beamforming optimization.

The metaphor of "understanding the unseen" beautifully connects technical pursuits with faith. As we probe invisible ionospheric layers with radio waves, our work reflects a reality extends beyond what we can directly observe.
